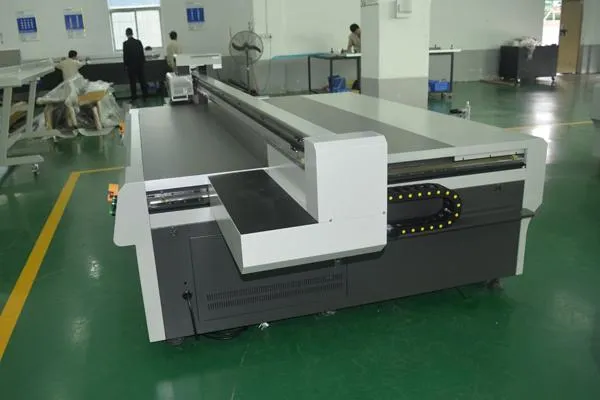

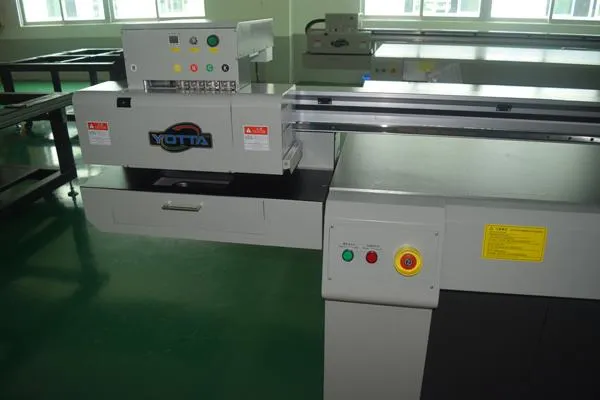

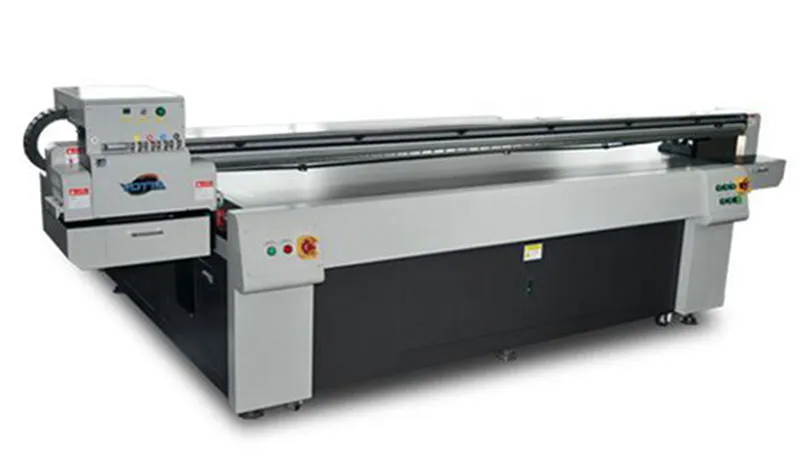

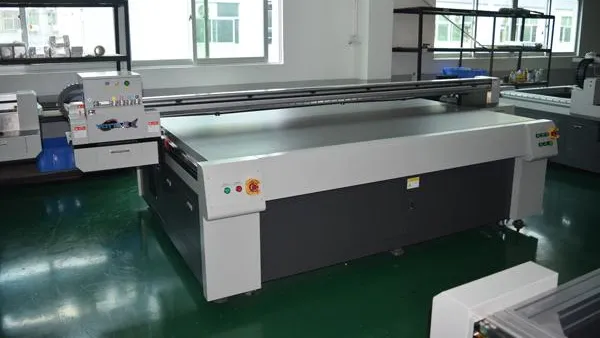

YD-F2513XR series printer is one of the newly developed flatbed UV printer, which enjoys a high cost effectiveness, excellent printing quality and outstanding printing efficiency. XAAR's high quality print head is introduced, which allows a 2.5pl ink droplet size and fine printing effect. The printer allows double-way printing, so the printing efficiency could be largely improved, and lead time could be shortened to a great extent. Therefore, the printer is widely applied for wide format printing.
Max. printing size: 2. 5 m (W) × 1.25 m (L) ×100 mm（H）
Printing resolution: 720x2400dpi
Print head: 1~8 with 4~8 colors for option
- Both rigid and flexible materials are applicable to Yotta's YD-F2513XR wide-format flatbed UV printer.
- Rigid materials: Glass, ceramic tile, ceiling board, aluminum plate, wood sheet, door plank, sign board, acrylic sheet, KT board, perspex sheet, PVC foam board, corrugated board and etc.
- Flexible materials: Residential wall paper, retroreflective sheet, canvas, carpet, leather, paper, PVC coated tarpaulin and etc.
| Model | YD-F2513XR | |
| Printing size | 2500×1300mm | |
| Print head model | Xaar XAAR1201(2.5pl) | |
| Resolution | 720x2400dpi (dots per inch) | |
| Number of print head | 1~8 (optional for 4~8 colors) | |
| Data interface | High speed USB | |
| Color control standard | ICC (International color consortium) | |
| RIP ( Raster image processor) | Maintop's RIP | |
| Printing speed | High speed mode | Color printing with double row print head 360x1200dpi 32㎡/h |
| Normal working mode | Color printing with double row print head 360x1800dpi 23㎡/h | |
| High precision mode | Color printing with double row print head 360x2400dpi 18㎡/h | |
| Printing ink | Original UV ink | |
| Printing color | Lm, Lc, Y, M, C, K, W, V for option | |
| UV curing system | Water cooled UV LED curing lamp | |
| Power supply | Double-phase, AC220V/3500W, 50/60HZ | |
| Dimension (L*W*H) | 3500mm× 2100mm x 1200mm | |
| Weight | 850KG | |
| Operating environment | A separate cleanroom with low level of environmental pollutants such as dust, small illumination, and good ventilation; Ambient temperature: 20ºC~28ºC Relative humidity: 40% ～ 60% (zero condensation) Ventilation equipment: Overhead exhaust fan with a displacement capacity of 600cfm is advisable. | |
- YD-F2513XR wide format UV flatbed printer introduces XAAR's brand new high-precision industrial print heads, and combines MEMS (Micro-Electro-Mechanical system) and piezo film together. 1280 holes displayed in four rows with a greyscale of 8 are installed in the UV printer, allowing two color printing with a resolution of 600dpi, and four color printing with a resolution of 300dpi. Meanwhile, since a max. ignition frequency of 50khz, and a 2.5PL ink droplet size could be achieved, a fine and perfect printing effect could be realized.

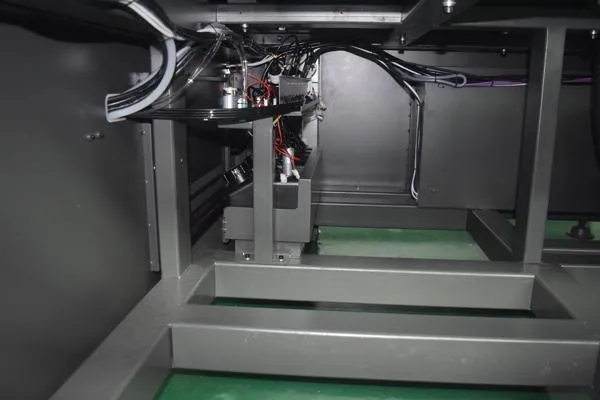

- Integrated stainless steel support underwent a stress relieving process, so it will not deform during transportation and is able to work more stably and reliably.

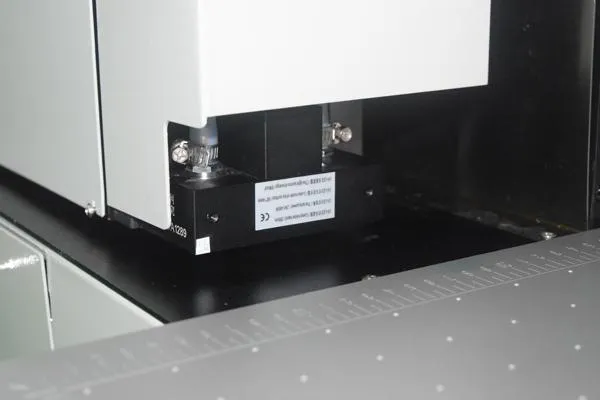

- A specially designed height meter is installed on our YD-F2513XR wide format UV flatbed printer, which allows an automatic measurement towards the thickness of printing material. In this way, manual counting will be canceled for decreased time & effort and improved accuracy.
- Efficient UV-LED light is introduced for our ink curing system, which helps to achieve outstanding curing effect and dramatic energy saving effect. Besides, a service life of 30,000 hours could be met.
- YD-F2513XR wide format flatbed UV printer supports double-direction printing, which helps to improve printing efficiency.
- Negative pressure system is introduced to the UV printer's auxiliary ink cartridge, which allows a separate controlling towards the negative pressure of color ink print head and white ink print head, so ink's feeding will be smoother.
