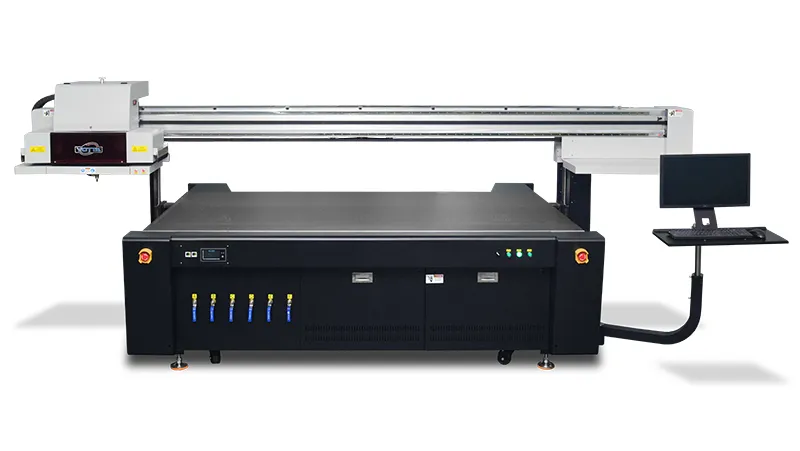

YD-P20R5 Digital UV Flatbed Printer

with Ricoh Gen5 industrial printhead

Our latest digital UV flatbed printer, model YD-P20R5, is equipped with the advanced Ricoh Gen5 industrial printheads, ensuring a seamless printing experience. This printing machine stands out for its capability to house 3-8 precision printheads, each designed for internal heating to maintain smooth and consistent ink flow for UV printing. Offering a dynamic range of 7 color options and the flexibility of 7-35pl variable droplet sizes, it brings to life detailed and vibrant prints with high accuracy. Our digital UV printing systems are deal for various applications, from eye-catching advertising materials to intricate designs on custom products, this printer is crafted to meet the demands of professionals seeking quality and efficiency in their printing processes.

Request a Quote

YD-P20R6 Digital UV Flatbed Printer

with Ricoh Gen6 industrial printhead

Harnessing the power of the renowned Ricoh Gen6 micro Piezo printheads, our YD-P20R6 digital UV flatbed printer marks a significant leap forward in printing capabilities. It's configured with 2-8 printheads that feature advanced internal heating mechanisms, ensuring consistent and uninterrupted ink flow for superior UV printing performance. With the flexibility to select from 4-8 vibrant colors and achieve a high-resolution output of 600 x 2400dpi, the digital UV flatbed printing systems enhance the quality of any print job. Its high ignition frequency ramps up ink distribution by 80%, slashing printing times by half and significantly boosting speed. Designed for precision, our digital UV printers offer 8 color options and variable droplet sizes ranging from 5-15pl, ensuring your prints are not only vibrant but also richly detailed. Ideal for a spectrum of applications, from intricate art reproductions to bold commercial signage, this equipment redefines expectations for what's possible in UV printing.

Request a Quote

Printing size: 2500×1300 mm (8×4 ft)
Printhead quantity: 2-8 pcs (4-8 colors optional)
Print resolution: 600×2400 dpi
Material thickness: Up to 130mm (4in)
UV curing system: LED UV lamp
Ink type: Original imported UV curable ink
Ink color: C, M, Y, K, LC, LM, White ink, Varnish (optional)
Interface mode: High speed USB
RIP software: Photoprint
Color management: International standard ICC
Input format: PDF, JPEG, TIFF, EPS, AI
Printer weight: 1250kg
Printer size (L×W×H): 4510× 2500× 1400mm (14.8×6.7×4.7ft)
Packaging size (L×W×H): 4700× 2250× 1730mm (15.4×7.4×5.7ft)
Power supply: 220V/AC(±10%), 50/60 HZ, 6 kW
Working environment:
Separate, less sunlight, ventilated workshop
Temperature: 18℃~30℃ (64℉~86℉)
Humidity: 30%~70% (non-condensing)
Ventilation equipment: suggest overhead exhaust fan (displacement 600 CFM)

Our advanced UV printing systems are suitable for a variety of industries, offering customized solutions that bring ideas to life:

• Home decoration industry: Used to print ceramic tiles, furniture, back walls, cupboards, ceilings, and home appliance panels with personalized designs that embellish living spaces.
• Advertising industry: Create posters, backlit displays, billboards, banners, PVC cards, KT boards, signage, and PP boards that capture attention and convey messages vividly.
• Glass industry: Beautify spaces with art glass, glass partitions, sliding doors, background walls, and frosted glass, all customized to your design needs.
• Packaging industry: Suitable for printing paper, wood, metal, PVC, and leather packaging with unique designs that adds value to your products.

Our printer is not just versatile in its applications but also in the materials it can work with. The possibilities are endless, from glass and phone cases to back wall grounds and ceramic tiles. Are you interested in seeing the quality for yourself? Contact us now for free print samples and discover how our printing solutions can elevate your projects.

• Glass
• Ceramic Tile
• Canvas
• Wallpaper
• Leather
• Acrylic

• Ink refill made simple
  Our digital UV flatbed printer features a newly designed ink tank that simplifies the refill process and ensures easy maintenance, keeping operations running smoothly.
• Automatic thickness measurement
  By automatically detecting the media's thickness, the UV printing device eliminates manual measurements, reducing the potential for errors and enhancing the efficiency of the printing process.
• Protective anti-collision system
  Equipped with a built-in anti-collision system that prevents damage to the printheads and the printer, automatically stopping the printhead carriage if it encounters an obstacle.
• Customizable suction platform
  The platform has six adjustable areas, allowing for flexible layouts and accommodating various sizes and types of printing media.
• Ink level monitoring
  An innovative system visually and audibly alerts you when ink levels are low, ensuring continuous production without interruption.
• Temperature-adaptive ink system
  This feature maintains optimal ink viscosity in varying temperatures, guaranteeing consistent print quality across all projects.
• Precision ink delivery
  The dual negative pressure system, including a separate setup for white and varnish inks, ensures accurate ink flow and superb print quality.
• Wide range of color options
  Supporting CMYK, Lc, Lm, white ink, and varnish, the flatbed printer can produce detailed 3D effects, embossed finishes, and high-gloss prints, catering to the unique demands of different industries.
• Energy-efficient UV led curing
  The UV LED curing system dries ink quickly, saves energy, and supports environmental sustainability, offering a long lifespan and effective performance.
