Equipped with Ricoh Gen5 internal heating industrial micro Piezo print head, It can ensure smooth ink jetting when UV printing.
Capable of handling materials up to 100mm thick, offering flexibility for a broad range of projects from signage to industrial applications.
Request a Quote
The UV flatbed printer for large format printing incorporates 3-8 advanced grey level Ricoh Gen5 printheads with internal heating and micro Piezo technology, ensuring an uninterrupted and smooth ink flow for UV printing. This advanced printing machine offers a rich palette of 7 colors and the flexibility of producing 7-35pl variable droplet sizes, which allows for precise and vibrant UV printing across a variety of flat materials up to 100mm thick. Its capabilities make it an ideal choice for achieving detailed and intense print quality on a wide range of substrates.
YD-P30R6 Large Format UV Flatbed Printer
Incorporates the latest in industrial printhead technology for superior print quality.
Accommodates materials up to 130mm thick, expanding the range of possible projects.
Request a Quote
Our innovative UV flatbed printer YD-P30R6 is equipped with 2-8 Ricoh Gen6 printheads, featuring grey level internal heating and micro Piezo technology for unmatched printing precision. This model offers a flexible color range with 4-8 options, alongside a high-resolution printing capability of 600 x 2400dpi. Thanks to its high ignition frequency of up to 50kHz, it boosts ink efficiency by 80%, slashes printing times by half, and enhances overall printing speed. This ensures consistently smooth ink flow for UV printing tasks. With its ability to handle 8 color variations and adjust ink droplet size between 5-15pl, the printer excels at delivering detailed and vibrant prints on flat materials up to 130mm thick.
Printing Samples
What effect are you aiming for with your prints?
When choosing UV flatbed printers don't expect anything less than crisp, vibrant results that stand the test of time. Our UV flatbed printing equipment ensures each image is waterproof, sun-resistant, wear-resistant, and fade-proof. Operating our large format printer is simple and hassle free. Plus, it prints so fast it keeps pace with the industry's top standards, delivering stable performance and instant results.
Specifications
Printing size: 3200×2000 mm (10.5×6.6 ft)
Printhead: Ricoh-Gen5 grey level Piezo print head
Printhead quantity: 2-8 pcs (4-8 colors optional)
Print resolution: 600×2400 dpi
UV curing system: LED UV lamp
Ink type: Original imported UV curable ink
Ink color: C, M, Y, K, LC, LM, White ink, Varnish (optional)
Working environment:
Temperature: 18℃~30℃ (64℉~86℉)
Humidity: 30%~70% (non-condensing)
Applications
Home decoration: Ideal for printing on ceramic tiles, creating unique furniture pieces, wall grounds, cupboards, and more.
Advertising: Bring your posters, backlit displays, billboards, banners, and signs to life with eye-catching detail.
Glass: Perfect for adding artistic touches to glass partitions, sliding doors, and background walls, or creating frosted glass effects.
Packaging: Offers versatile printing solutions for paper, wood, metal, PVC, and leather packaging.
Suitable Printing Materials
Our UV flatbed printers are versatile and able to print on materials ranging from glass and ceramic tiles to phone cases and more. Do not hesitate to contact us to request free samples if you are interested in assessing the print quality by yourself.
Features
Ink tank level display and alarm system
Enhanced anti-collision carriage design
Ink pressure system for color and white inks
Adjustable ink cartridge temperature control
Integrated tempered steel frame
German engineered silent drag chain
Adaptable suction platform with six zones

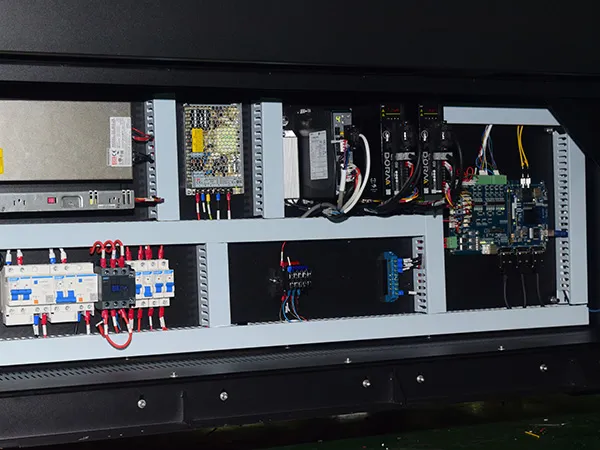

Standardized cable routing design
Innovative ink refill system: Features a new ink tank design that simplifies adding ink, making the printer easy to use and maintain.
Precision thickness measurement: Automatically gauges the thickness of printing media, eliminating manual measurement errors and ensuring optimal print quality without risking damage.
Advanced anti-collision technology: Equipped with a sensitive anti-collision mechanism that protects the printheads and printer from damage by stopping the print head carriage upon encountering obstacles.
Versatile suction platform: Offers a controlled suction feature across six designated areas (ABCDEF), allowing for a more flexible arrangement of printing media and accommodating various sizes and formats.
Ink level monitoring system: A newly integrated system for monitoring ink levels visually and audibly, ensuring timely refills and uninterrupted printing operations.
Temperature-controlled ink system: Maintains ink viscosity at lower temperatures by automatically adjusting to ambient conditions, supporting consistent high-quality prints.
Dual negative pressure ink system: Incorporates a highly stable dual negative pressure system, including a separate white and varnish inks setup for more precise ink flow control.
Comprehensive color printing: Offers a broad color palette with CMYK, Lc, Lm, including white ink and varnish options, enabling the creation of 3D effects, embossed textures, and glossy finishes to meet diverse industry needs.
Efficient UV LED curing: Utilizes UV LED lighting for the ink curing, ensuring quick drying, energy savings, and prolonged system longevity, while being environmentally friendly.
