Features

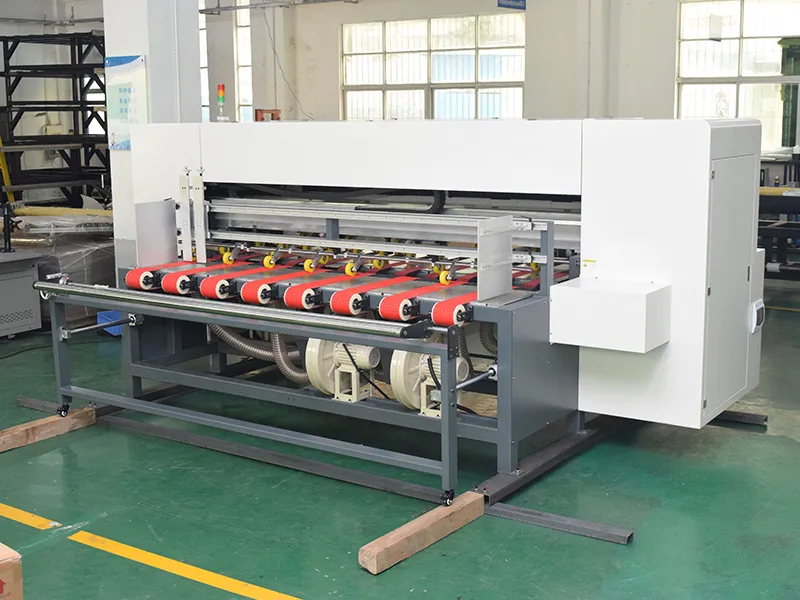

- Corrugated UV inkjet printer is equipped with Epson industrial printheads, with a maximum print width of up to 2500mm.
- Utilizes belt technology for continuous high-speed printing, this printer is adjustable from 1 to 4 color models without the need for electroplating or skilled workers. Orders can be changed within a minute.
- With fully automatic leading-edge paper feeding, this printer is suitable for uninterrupted production of products such as folding boxes, cartons, paper boxes, various types of A, B, C, E corrugated cardboard, honeycomb cardboard, and all water-absorbent materials.
- Printing width can be customized according to requirements to meet the needs of different manufacturers for large or small batch production, eliminating the cumbersome plate-making process.
- This printing machine features saved warehouse space, environmental protection, no pollution, low power consumption and CMYK computer color grading.
- The use of specialized dye ink makes this printer leading in the industry in terms of waterproofing and color display effects.
- 12 independent belt conveyors with large load-bearing capacity, allows for easy and accurate transporting of even overweight materials, convenient inspection and maintenance.
Printing Samples
Specifications
| Model | YD-C2500 |
| Print area | 2500mm |
| Printhead | Epson i3200 micro-piezo printhead |
| Resolution | 360x600dpi(1pass) 360x1200dpi(2pass) |
| Print speed | 1-700㎡/h |
| Ink injection | Automatic continuous |
| Ink configuration | C, M, Y, K |
| Ink type | Water-based dye ink / water-based pigment ink |
| Printhead quantity | 8 (optional) |
| Material thickness | 2-30mm |
| Max. Material width | 2500mm |
| Feeding | Automatic lead edge feeding, conveyor belt adsorption servo precise feeding |
| Rip software | MainTop / PhotoPrint |
| File formats | PDF, JPEG, TIFF |
| Operating system | Win10, X64 |
| Voltage | 220V/AC (±10%),50Hz/60Hz, 10kW |
| Weight | 2100kg |
| Dimensions (L x W x H) | 4260mm x 2000mm x 1800mm |
| Working environment | Temperature: 20°C~25°C Humidity: 50%-70% |
